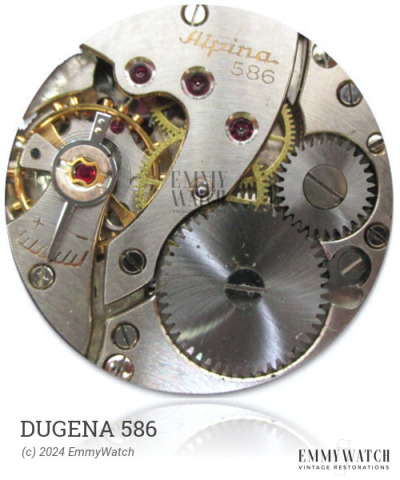

Dugena 586
Ligne: 7.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 17.5 mm
Height: 2.85 mm
Hands: 1.20 x 0.60 mm
Base: ETA 2512
The Dugena 586 watch movement is a manual wind movement that was in use around 1965. There are no known differences between the Hamilton 26 and 261 movements. Similarly, there are no differences between the Hamilton 26 and 680 movements.
The Dugena 586 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.085 x 230 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
