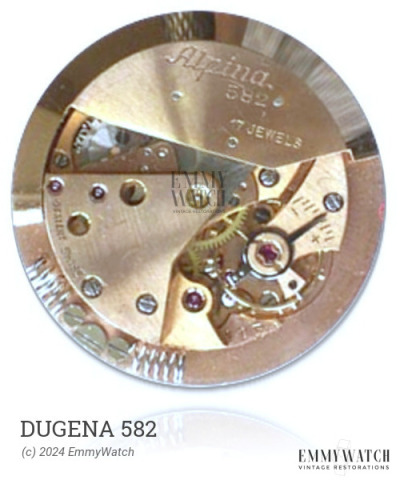

Dugena 582
Ligne: 11.5'''
Jewels: 17/18/21/25
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1942-
Diameter: 26.3 mm
Height: 5.85 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Dugena 582 watch movement, part of the first calibre family with bidirectional rotor winding, was introduced around 1942. It offers automatic winding and sweep seconds functionality. The 690 movement is also known to be equipped with an optional Reed's regulator. Additionally, there is limited information available regarding the differences between the 690, 691, 696, and 698 calibres.
The Dugena 582 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 987 | Ordinary/None | Buy staff |
| 2897 | Incabloc | Buy staff |
| 3187 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.110 x 340 x 10.0 mm | GR3984X | Auto | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
