Dugena 539
Ligne: 19'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 43.15 mm
Height: 5.6 mm
Hands: 1.85 x 1.10 / 0.27 mm

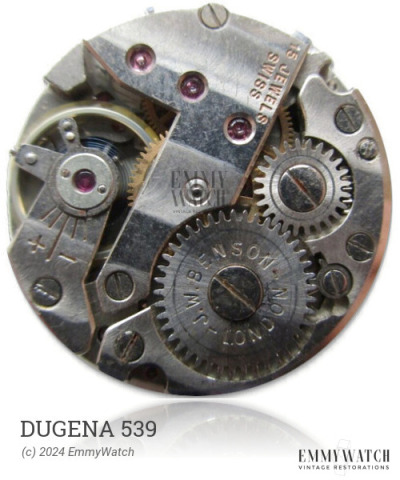

The Dugena 539 watch movement is a hunter calibre featuring a Breguet hairspring. Early samples of this movement were equipped with a bimetallic screw balance. Except for variations in bridge layouts, no other differences are known between the 529 and 537 models. The movement includes functions such as stem wind and set, sub second display, right setting, reverse winding, and was primarily used during the approximate period of 1930.
The Dugena 539 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 571 | Ordinary/None | Buy staff |
| 572 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.30 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring | |
| 2.30 x 0.190 x 500 x 15.5 mm | GR6416 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
