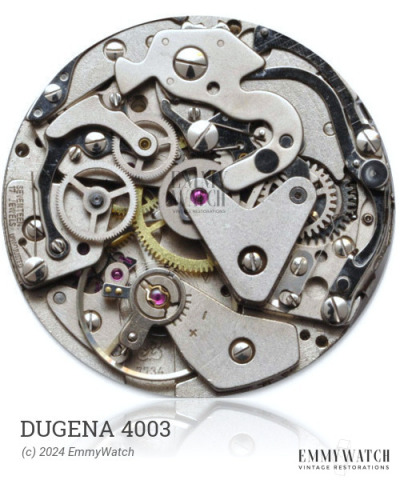

Dugena 4003
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 23.75 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 / 0.24 mm
Base: A. Schild 340
The Dugena 4003 watch movement is one of several variations within a series of movements produced by A. Schild. It is part of a group of movements that include designations such as 302, 303, 311, 313, 323, 324, 328, 329, 333, 340, 342, 344, 361, 362, 365, 371, 383, 396, 473, 546, 549, 569, 585, 595, 603, 621, 629, 636, 694, 709, 714, 717, 720, 731, 775, 790,803, 825, 915, and 951. The Dugena 4003 movement is a manual wind movement featuring a sub-second function. It was used in watches produced around 1925.
The Dugena 4003 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
