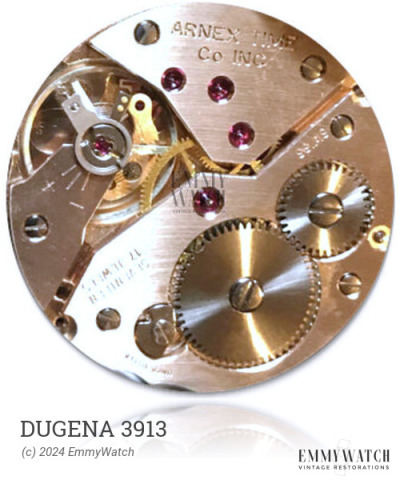

Dugena 3913
Ligne: 11.5'''
Jewels: 17
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
The Dugena 3913 watch movement is a variants of the Record design, which was acquired by Longines. It is not known if other Wittnauer calibres were also available. Manual-wind versions of this movement are only seen from Wittnauer, not from Record or Lobines. The movement features functions such as manual winding, sub seconds, and a date function set by changing 19:30-24h. It was primarily used during the period around 1960.
The Dugena 3913 features the following functions:
- Date: set by changing 19:30-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 320 x 9.5 mm | GR2652 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
