Dugena 383
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.3 mm
Height: 4.0 mm
Hands: 1.20 x 0.55 / 0.16 mm

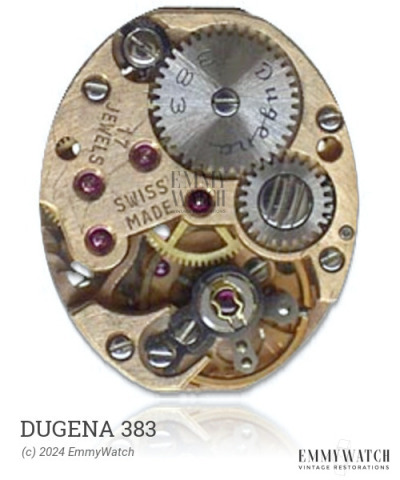

The Dugena 383 watch movement is a manual wind mechanical movement with a sub-second function. It was primarily used during the approximate period of 1950.
The Dugena 383 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 260 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.105 x 280 x 8.5 mm | GR4502 | Manual | Buy mainspring |
| 1.50 x 0.110 x 320 x 9.5 mm | GR4150 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
