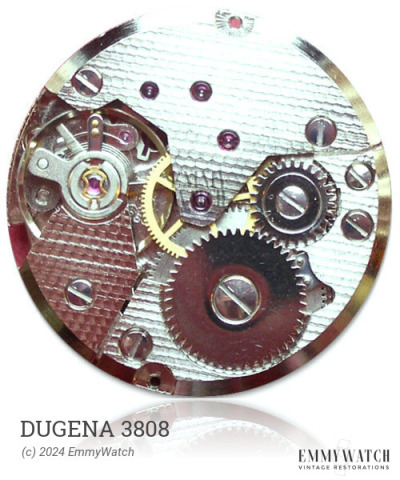

Dugena 3808
Ligne: 11.75'''
Jewels: 17
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1975
Diameter: 26.8 mm
Height: 4.65 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Dugena 3808 is a manual wind watch movement introduced in the mid-1970s. It is also known as the 160 movement. The movement features a sweep seconds hand, a day and date display, and a calendar with quickset functionality. The day is set by changing the 21-24 hour indication, while the date can be adjusted by repeatedly pulling and pushing the crown. The movement also includes Incabloc Shock Protection for enhanced durability.
The Dugena 3808 features the following functions:
- Calendar with quickset
- Date: quickset by repeated pulling and pushing the crown
- Day and Date Display
- Day: set by changing 21-24h
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.110 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
