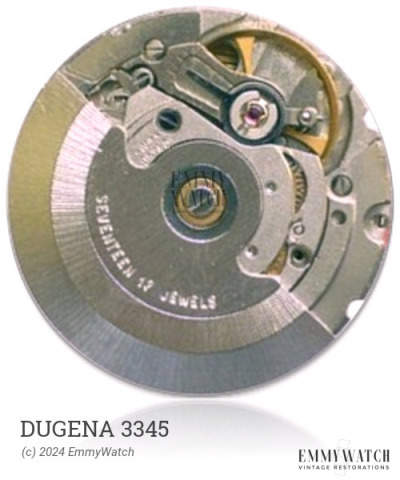

Dugena 3345
Ligne: 8.75'''
Jewels: 17/21
Lift Angle: 53°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1972-
Diameter: 19.7 mm
Height: 5.4 mm
Hands: 1.30 x 0.80 x 0.20 mm
The Dugena 3345 watch movement, introduced in 1972, is an automatic movement with a unique indirectly driven minute hand that enables a larger balance and low profile. It features various functions including sweep seconds, quickset date, shock protection, and automatic winding.
The Dugena 3345 features the following functions:
- Automatic Winding
- Date: quickset
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.083 x 315 x 8.0 mm | GR2874X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
