Dugena 3314
Ligne: 11.5'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26 mm
Height: 4.15 mm
Hands: 1.50 x 0.80 / 0.18 mm

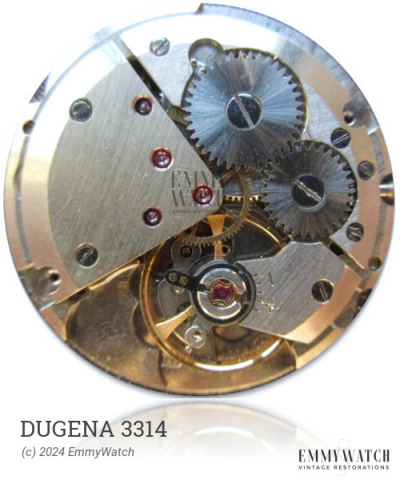

The Dugena 3314 watch movement is a manual wind movement with a pin-lever escapement. The ratchet is located on the dial side and it features a crown mechanism with a rocker bar. It incorporates a sub second function and is classified as a pin lever movement. The Dugena 3314 movement was used around the period of 1950.
The Dugena 3314 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1931 | Ordinary/None | Buy staff |
| 3274 | Ordinary/None | Buy staff |
| 3008 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.100 x 240 x 7.5 mm | GR41181 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
