Dugena 3307
Ligne: 12'''
Jewels: 21
Lift Angle: 55°
Power Reserve: 47 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1984
Diameter: 27.4 mm
Height: 5.35 mm
Hands: 1.50 x 0.90 x 0.20 mm

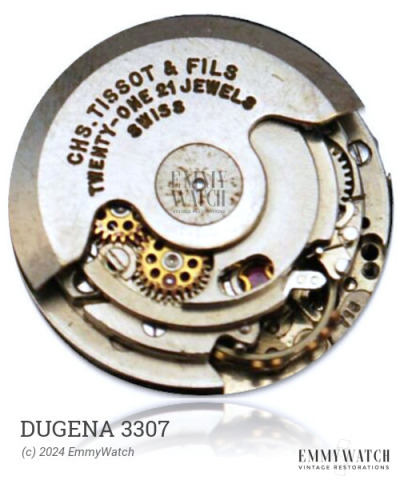

The Dugena 3307 watch movement is a ball-bearing rotor, featuring a sophisticated excenter self-winding mechanism with just one gear stage. This movement is similar to the 6309A but has 21 jewels. It offers several functions, including automatic winding, sweep second hand, quickset day and date display in two languages, and a quickset calendar. The movement also provides shock protection. The Dugena 3307 movement was used in watches manufactured around 1984.
The Dugena 3307 features the following functions:
- Automatic Winding
- Calendar with quickset
- Date: quickset
- day: quickset, 2 languages
- No Manual Wind
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

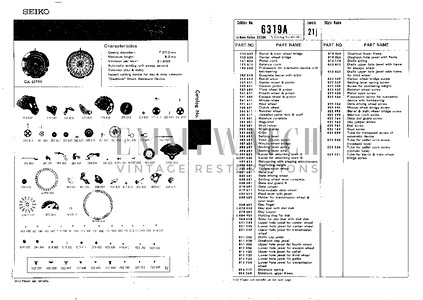

Parts Listing
