Dugena 2527
Ligne: 18'''
Jewels: 7
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 41.7 mm
Height: 4.8 mm
Hands: 1.75 x 1.05 / 0.25 mm

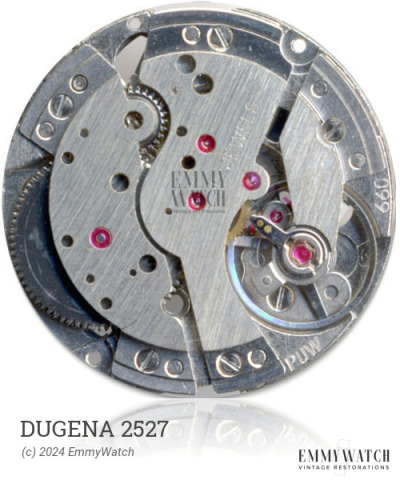

The Dugena 2527 watch movement, commonly referred to as the hunter calibre, features a monometallic screw balance for enhanced precision. It is equipped with a Breguet hairspring and demonstrates versatility through the use of different bridge shapes. This movement offers stem winding and setting functionality, along with a sub-second feature. The Dugena 2527 movement is known to have been in use during the approximate time period of 1940.
The Dugena 2527 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.200 x 475 x 16.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
