Dugena 2315
Ligne: 16.5'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 36.6 mm
Height: 6.05 mm
Hands: 2.00 x 1.15 / 0.27 mm

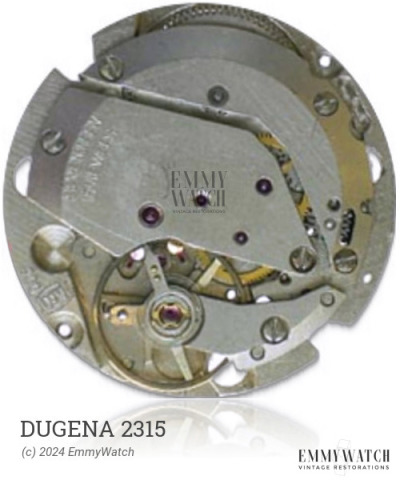

The Dugena 2315 is an open face calibre watch movement with varying bridge shapes. It is equipped with a stem wind and set function, a sub second function, and offers both regular and reverse winding capabilities. Additionally, for the US market, an optional negative stem mechanism is available. This movement is classified as 17.75''' in size and was primarily utilized around the 1920s.
The Dugena 2315 features the following functions:
- Regular and Reverse Winding
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.20 x 0.170 x 430 x 14.5 mm | Manual | Buy mainspring | |
| 2.20 x 0.180 x 400 x 14.0 mm | GR6245 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
