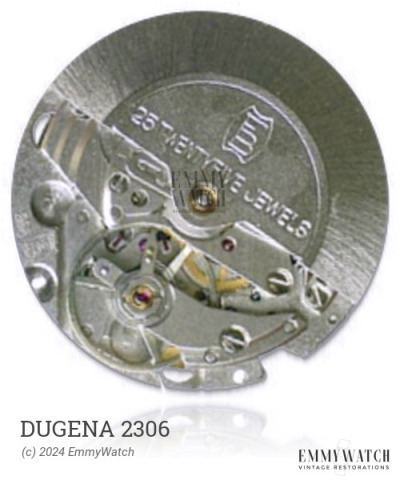

Dugena 2306
Ligne: 11.5'''
Jewels: 25
Power Reserve: 45 hrs
Frequency: 19800 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.40 x 0.90 x 0.20 mm
The Dugena 2306 watch movement features jewel bearings for the barrel, an integrated automatic gear within the movement, a rugged design with a relatively large balance and low profile, and initially incorporated ruby-ball bearings for the first samples. This movement supports automatic winding and includes a sweep second feature. It was designed and used in watches around the period of 1970.
The Dugena 2306 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5059 | Ordinary/None | Buy staff |
| 5059 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.100 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
