Dugena 2302
Ligne: 19'''
Jewels: 17
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1900
Diameter: 43.2 mm
Height: 9.0 mm
Hands: 2.30 x 1.70 x 0.30 / 0.30 mm

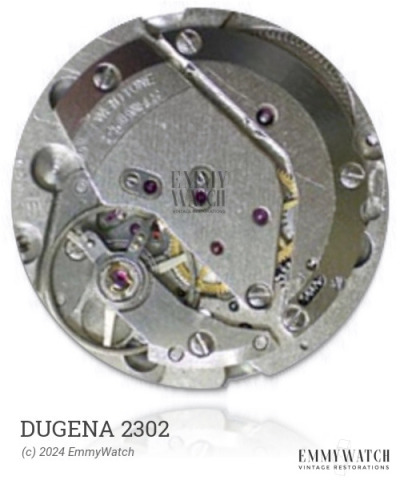

The Dugena 2302 watch movement is an open face calibre featuring a bimetallic screw balance with a recess in the stem for operating a set lever and a set-lever screw. Additionally, there is a post on the rocker designed for the pin-set feature. This movement offers various functions, including a manual-wind chronograph with 60 seconds and 30 minutes register, controlled by a pillar wheel. It can be both stem-wound and pin-set, with the option of a set lever and sub-second display. The Dugena 2302 movement was in use around the year 1900.
The Dugena 2302 features the following functions:
- Manual-wind chronograph, 60s, 30min, pillar wheel
- Option: Set lever
- Option: sub second
- Stem wind and pin set
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
