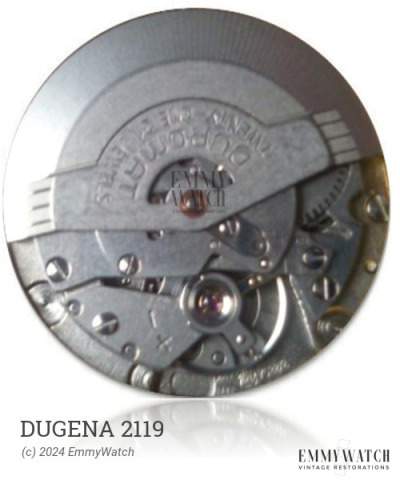

Dugena 2119
Ligne: 12'''
Jewels: 17/25
Lift Angle: 55°
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1968-1969
Diameter: 27.4 mm
Height: 5.25 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Dugena 2119 watch movement, employed during the period of 1968-1969, incorporates a sophisticated excenter self-winding mechanism with a single gear stage. It features combined Diafix settings for the escapement wheel and offers various functions including automatic winding, sweep second hand, day display, date that can be quickly set by repeated pushing of the crown, and a hack feature.
The Dugena 2119 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
