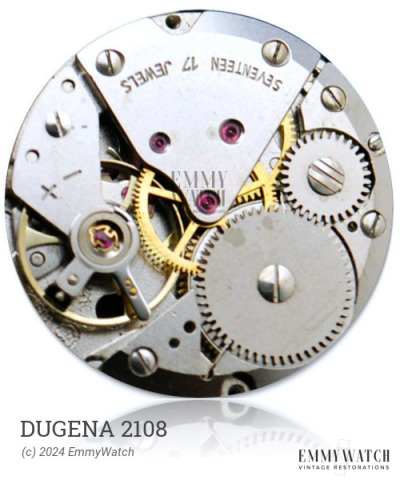

Dugena 2108
Ligne: 11.5'''
Jewels: 17
Power Reserve: 46 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 3.8 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Dugena 2108 watch movement, which was predominantly used around the period of 1970, is a manually-wound movement that features a sweep second hand. Its design incorporates an indirectly driven minute mechanism, which provides both a large balance and a low profile. Additionally, this movement offers the functionality to set the day by adjusting it by +/-24 hours, and the date by changing it between 20-24 hours.
The Dugena 2108 features the following functions:
- Date: set by changing 20-24h
- Day: set by +/- 24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.120 x 340 x 10.5 mm | GR2469 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
