Dugena 1203
Ligne: 11.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.30 x 0.90 x 0.21 mm

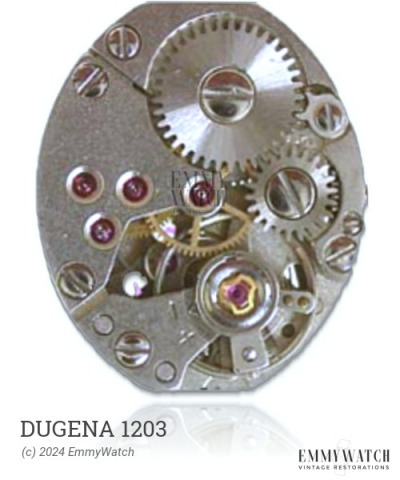

The Dugena 1203 watch movement, also known as signatures FHF, ST, or FHF-ST, is a mechanical movement that was in use around 1975. It features manual winding and sweep seconds. The movement is equipped with shock protection to enhance its durability.
The Dugena 1203 features the following functions:
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
