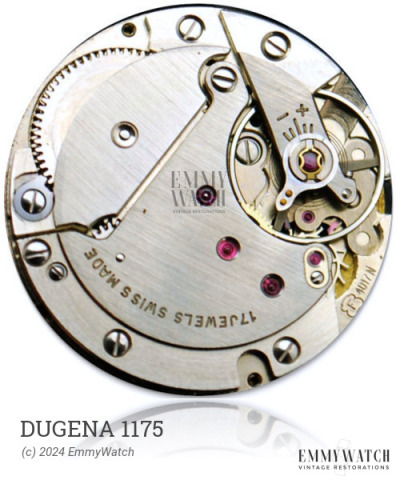

Return To ShopThe Dugena 1175 watch movement, produced by Alpina Gruen Gilde from 1929 to 1937, is a manual wind movement integrated with sub second functionality. With its usage spanning from 1928 onwards, this watch movement remains a testament to the rich history of mechanical timekeeping.
The Dugena 1175 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.70 x 0.110 x 260 x 8.0 mm | GR4904 | Manual | Buy mainspring |
1.68 x 0.110 x 340 x 10.0 mm | Manual | Buy mainspring | |
1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
HAIRSPRING STUD COVER | M/250 | 3257/ROL 600 | Buy part |
JEWEL, LOWER BALANCE CAP | 330/173 (use 6944/ROL 1030) | 330/173 | Buy part |
JEWEL, UPPER BALANCE | 336/39 | 3078/ROL | Buy part |
JEWEL, UPPER BALANCE CAP | 311/174 | 311/174 | Buy part |
MAINSPRING 1.70-.11-330 | MS-810N | GR 4904 | Buy part |
PALLER ARBOR | 72S/63P | 714/FE 233.60 | Buy part |
PALLET | 710/GRU 877 | 710/GRU 877 | Buy part |
PALLET ARBOR-SCREW TY | 714/33 | Buy part | |
REGULATOR COVER | M/249 | 2851/ROL 500 | Buy part |
ROLLER,INC W/CREASE 215X95X37 | 82S/176R | 82S/176R | Buy part |
SCREW, INT CROWN WHEEL | 5420/512 | 5420/512 | Buy part |
SCREW, SET LEVER | 5443/974 | Buy part | |
SET LEVER | 443/1209 | Buy part | |
STAFF | 100/416 | 100/416 | Buy part |
STAFF, GENUINE PIV 8 | 723/480 | 723/480 | Buy part |
STEM | 200/422F | 401/254 | Buy part |
STEM, GENUINE | 401/254 | Buy part |
