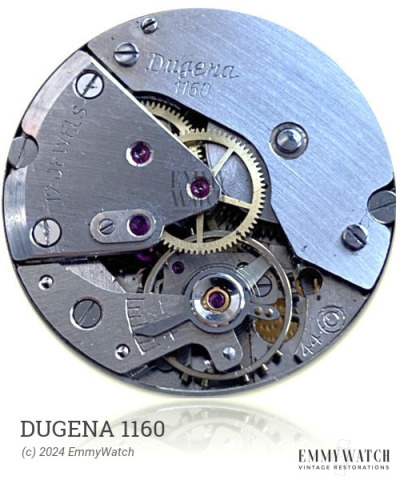

Dugena 1160
Ligne: 12.5'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 28.2 mm
Hands: 1.40 x 0.95 mm
The Dugena 1160 is a mechanical watch movement that was primarily used in watches from around 1955. It is a manual-wind chronograph movement with a 60-second counter and 30/45-minute subdials, featuring cam switching. The movement also includes a sub second function.
The Dugena 1160 features the following functions:
- Chronograph Movement
- Manual-wind chronograph, 60s, 30/45min, cam switched
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.120 x 285 x 11.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.120 x 380 x 11.0 mm | GR4540 | Manual | Buy mainspring |
| 1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
