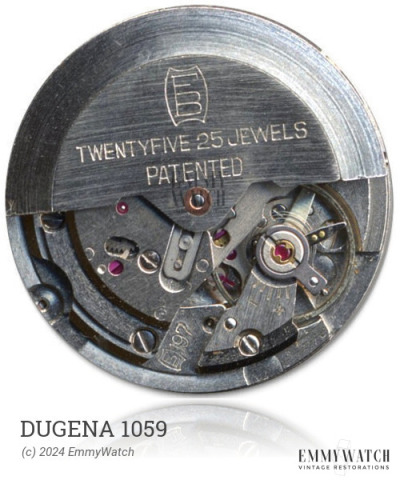

Dugena 1059
Ligne: 8'''
Jewels: 24
Lift Angle: 48°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1971-1989
Diameter: 18 mm
Height: 5.3 mm
Hands: 1.10 x 0.55 x 0.16 mm
The Dugena 1059 watch movement is a chronometer that was produced from 1971 to 1989, with a total of 1,500,000 units made. It shares several components with the manual-wind family 620. The movement features automatic winding and a sweep second hand. Additionally, it offers date functionality, which can be adjusted by changing the time between 21 and 24 hours.
The Dugena 1059 features the following functions:
- Automatic Winding
- Date: set by changing 21-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
