Dugena 1036
Ligne: 13.5'''
Jewels: 17/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1949-1950
Diameter: 30.6 mm
Height: 5.9 mm
Hands: 1.50 x 0.90 x 0.21 mm

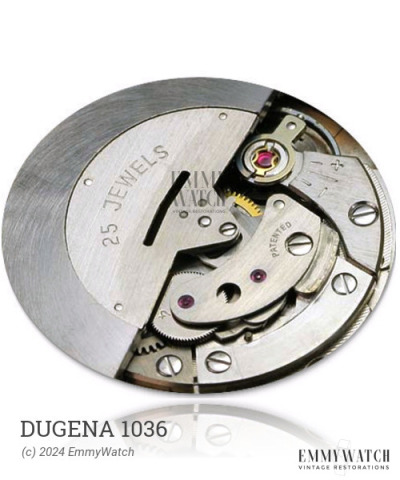

The Dugena 1036 is a gents automatic-family watch movement with a ball-bearing rotor. Produced from 1949-1950, it underwent changes from T- to U shock device and a modified calibre, resulting in several variants. While it is uncertain if all calibres were made in the TC variant, the known versions were listed. The UT signatures were also changed to UC. The movement features automatic winding, sweep second, and date functions.
The Dugena 1036 features the following functions:
- Automatic Winding
- Date
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
