Doxa 9
Ligne: 11.5'''
Jewels: 17
Power Reserve: 49 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1965-1972
Diameter: 26 mm
Height: 4.35 mm
Hands: 1.50 x 0.90 mm

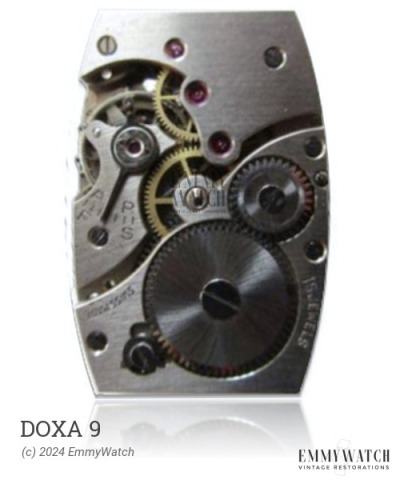

The Doxa 9 watch movement, used from 1965 to 1972, featured optional plastic bushings instead of dial screws and underwent minor modifications during its production period. It is a manual wind movement with day and date functions which can be set by +/-24h and changing 20-24h, respectively.
The Doxa 9 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.105 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
