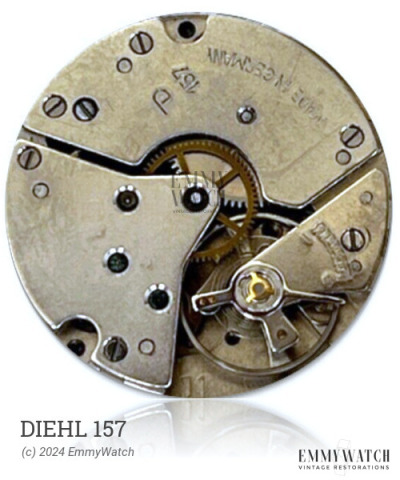

Diehl 157
Ligne: 7.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 17.5 mm
Hands: 1.20 x 0.60 mm
The Diehl 157 watch movement is a manual wind movement first utilized around 1960. It includes the option for a sub second display and a date function. This movement does not feature a second hand.
The Diehl 157 features the following functions:
- Date function
- Manual Winding
- No Second Hand
- Sub second option
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.080 x 220 x 7.0 mm | GR3081 | Manual | Buy mainspring |
| 1.25 x 0.070 x 210 x 6.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.075 x 220 x 6.5 mm | GR2861 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
