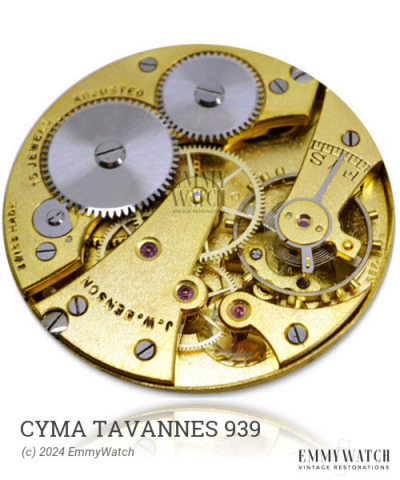

Cyma Tavannes 939
(Cyma, Tavannes)
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 23.3 mm
Height: 3.8 mm
Hands: 1.30 x 0.80 / 0.20 mm
The Cyma Tavannes 939 is a mechanical watch movement that shares similarities in design with several other A. Schild movements, such as the 984, 1009, 1010, and many others mentioned. Aside from differences in bridge shapes, no other distinct variations are known. The 1218 movement is a manual wind movement with a sub second function. It was commonly used in watches produced around 1940.
The Cyma Tavannes 939 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 300 x 9.0 mm | GR4879 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
