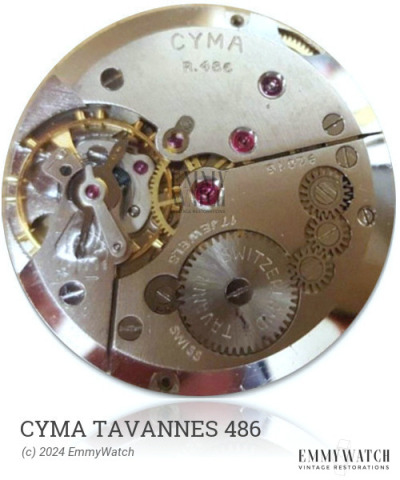

Cyma Tavannes 486
(Cyma, Tavannes)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 23.7 mm
Height: 4.0 mm
Hands: 1.40 x 0.70 / 0.21 mm
The Cyma Tavannes 486 is a mechanical watch movement with varying bridge layouts, many of them possibly signed as FHF 150. It is listed with numerous individual designations in old data sheets, including 150, 151, 156, 158, 159, 162-164, 166, 174, 178, 187, 201, 203, and 208. This movement is available in an optional size of 11.5'''. Its functions include manual winding, a sub-second display, and it was predominantly used around the 1940s.
The Cyma Tavannes 486 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 320 x 9.0 mm | GR5254 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
