Cyma Tavannes 484.2
(Cyma, Tavannes)
Ligne: 19'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 42.65 mm

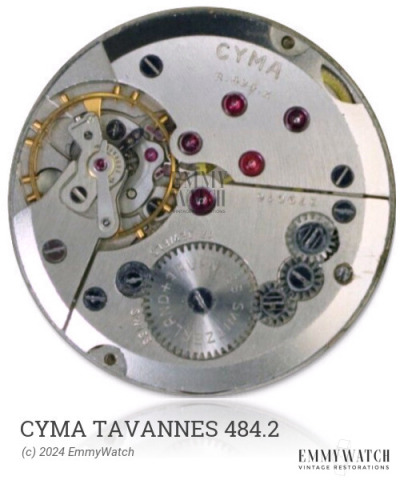

The Cyma Tavannes 484.2 is an open face calibre movement featuring a Breguet hairspring. It is a stem-wind chronograph rattrapante with 60-second and 30-minute counters, controlled by a pillar wheel. The movement also includes a split second function activated by a crown pusher, as well as a sub-second display. The Cyma Tavannes 484.2 was commonly used around the 1930s.
The Cyma Tavannes 484.2 features the following functions:
- Split second with crown pusher
- Stem-wind chronograph rattrapante, 60s, 30min, pillar wheel
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.00 x 0.220 x 540 x 18.5 mm | GR5928 | Manual | Buy mainspring |
| 2.00 x 0.220 x 530 x 18.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
