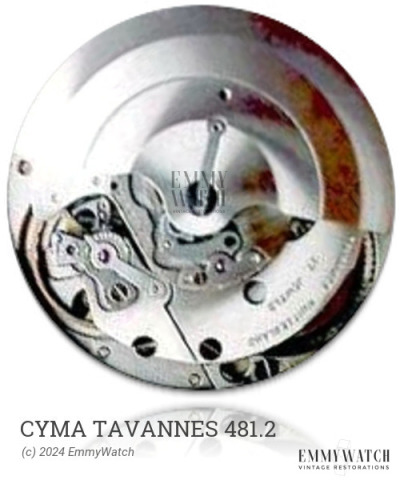

Cyma Tavannes 481.2
(Cyma, Tavannes)
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 5.25 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Cyma Tavannes 481.2 watch movement is a mechanical movement that features an indirectly driven minute to allow for a large balance and low-profile design. This movement was used in watches produced around 1970 and offers several functions including automatic winding, sweep seconds, and a day and date display. The date can be set by changing the time to 20:20-24h. The movement also includes a ball-bearing rotor for efficient winding.
The Cyma Tavannes 481.2 features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Date: set by changing 20:20-24h
- Day
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 320 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
