Cyma Tavannes 163K
(Cyma, Tavannes)
Ligne: 11.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 26 mm
Height: 4.25 mm
Hands: 1.40 x 0.90 x 0.21 mm

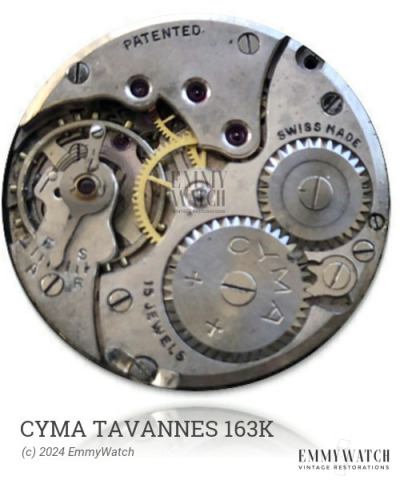

The Cyma Tavannes 163K is a manual wind watch movement that features a sweep second hand and a day and date display with quickset function. Its unique design, with the train and hand gear separately driven by the barrel, allows for a low profile and a large balance, but it requires precise and shake-free gears due to the many wheels involved in the coupling between the second and minute hands. The movement also incorporates shock protection, ensuring its durability and reliability.
The Cyma Tavannes 163K features the following functions:
- Calendar with quickset
- Date: quickset
- Day: quickset
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
