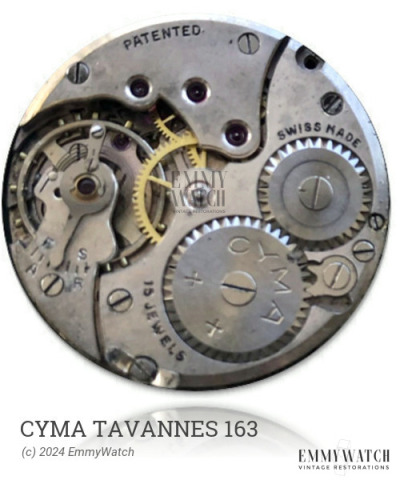

Cyma Tavannes 163
(Cyma, Tavannes)
Ligne: 6.75 x 11'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 15.1 x 25 mm
Height: 3.3 mm
Hands: 1.20 x 0.60 mm
The Cyma Tavannes 163 is a manual wind watch movement that was predominantly used around the period of 1930. While there are differences between the 500, 501, 543, 626, and 668 movements, these distinctions are not known.
The Cyma Tavannes 163 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 240 x 8.0 mm | GR2917 | Manual | Buy mainspring |
| 1.00 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.00 x 0.100 x 260 x 8.0 mm | GR2440 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
