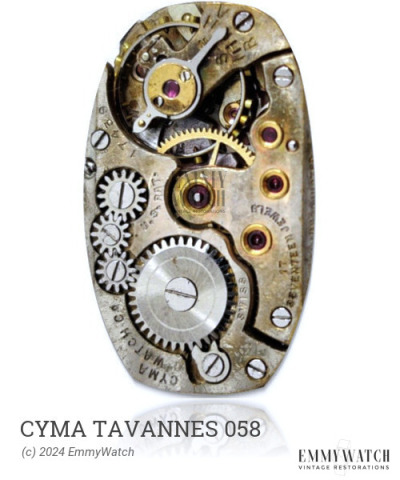

Cyma Tavannes 058
(Cyma, Tavannes)
Ligne: 5.75 x 8.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.5 mm
Height: 3.6 mm
Hands: 1.10 x 0.55 mm
The Cyma Tavannes 058 watch movement is a manual wind mechanical movement that was used around the period of approximately 1945.
The Cyma Tavannes 058 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2696 | Ordinary/None | Buy staff |
| 300 | Ordinary/None | Buy staff |
| 313 | Incabloc | Buy staff |
| 3172 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 280 x 7.5 mm | GR4078 | Manual | Buy mainspring |
| 1.50 x 0.080 x 260 x 7.5 mm | GR40771 | Manual | Buy mainspring |
| 1.50 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.100 x 280 x 8.5 mm | GR3663 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
