Cortebert 654-1
Ligne: 8.75'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 19.65 mm
Height: 3.4 mm
Hands: 1.15 x 0.55 / 0.15 mm

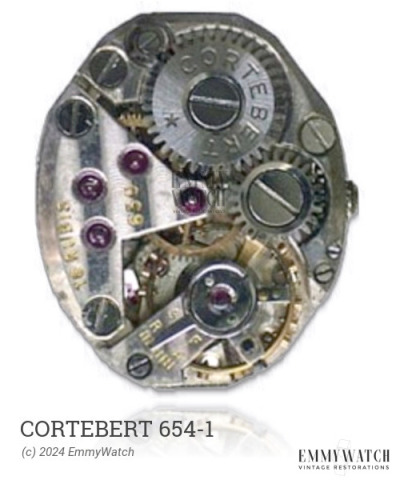

The Cortebert 654-1 watch movement is a manually wound movement with sub-second functionality. It was commonly used during the period of approximately 1940.
The Cortebert 654-1 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1236 | Ordinary/None | Buy staff |
| 3552 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.080 x 260 x 7.5 mm | GR3608 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
