Cortebert 514
Ligne: 16.5'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 6.05 mm
Hands: 2.04 x 1.15 / 0.28 mm

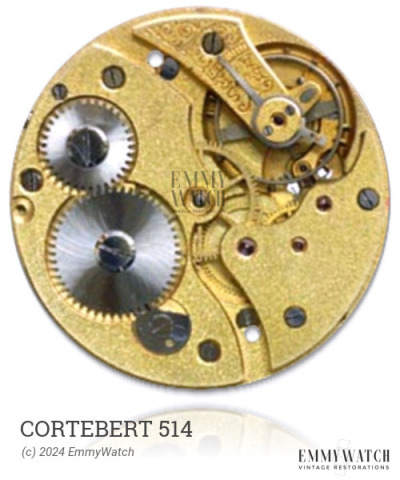

The Cortebert 514 is a mechanical watch movement characterized by its open face calibre and varying bridge shapes. The movement offers several functions, including stem wind and set, sub second display, regular and reverse winding. The Cortebert 514 movement was commonly used in watches produced around the year 1940.
The Cortebert 514 features the following functions:
- Regular and Reverse Winding
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.20 x 0.170 x 430 x 14.5 mm | Manual | Buy mainspring | |
| 2.20 x 0.180 x 400 x 14.0 mm | GR6245 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
