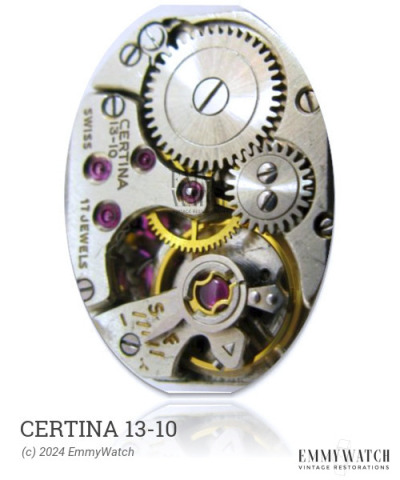

Certina 13-10
Ligne: 6'''
Jewels: 17
Lift Angle: 53°
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.2 mm
Hands: 1.00 x 0.50 mm
The Certina 13-10 is the smallest calibre produced by ETA. It features an early fixed stud carrier that was later replaced with a mobile one. The minute hand is indirectly driven, resulting in a large balance. Additionally, the movement has manual wind capability and incorporates an Offset Center Wheel.
The Certina 13-10 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4623 | Ordinary/None | Buy staff |
| 4791 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.43 x 0.063 x 201 x 5.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.060 x 200 x 5.5 mm | GR3561 | Manual | Buy mainspring |
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
