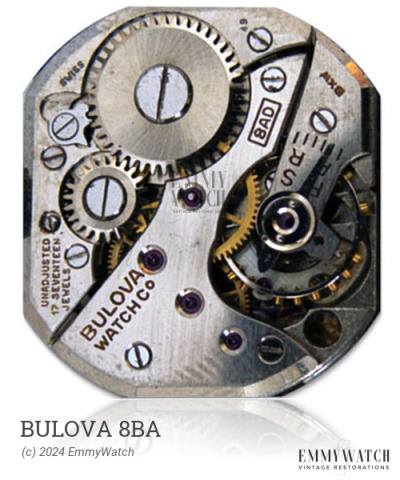

Return To ShopThe Bulova 8BA watch movement, used from 1936 onwards, features a Breguet hairspring and is comparable to the 355 movement. It offers three available hand post heights, allowing its application in both flat and curved models. The movement also incorporates Conoruma, Gruen's proprietary alloy for the hairspring and balance, which exhibits low temperature dependence. It operates with manual winding and includes a sub-second function.
The Bulova 8BA features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.20 x 0.110 x 260 x 8.0 mm | GR2947 | Manual | Buy mainspring |
1.18 x 0.105 x 250 x 8.5 mm | Manual | Buy mainspring | |
1.10 x 0.105 x 240 x 8.5 mm | GR2622 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BALANCE COMPLETE, BREGUET | 721/GRU 311 | Buy part | |
CENTER WHEEL | 201/GRU 500 | 200/GRU 500 | Buy part |
CLUTCH | 407/GRU 311 | Buy part | |
FOURTH WHEEL | 220/GRU 311 | 220/GRU 311 | Buy part |
MAINSPRING 1.20-.11-260 8 | MS-310H | GR 2947 | Buy part |
PALLET ARBOR | 72S/109P | 714/AS 843 | Buy part |
RATCHET WHEEL | 415/GRU 311 | Buy part | |
ROLLER 210X90X42 | 82S/87R | Buy part | |
SET BRIDGE | 445/GRU 311 | Buy part | |
SET LEVER | 443/GRU 500 | 443/GRU 500 | Buy part |
STAFF | 100/384 | 723/GRU 311 | Buy part |
STEM, OVERSIZED HIB TAP 8 | 200/926F | Buy part | |
STEM, TAP 8 | 200/399F | 401/GRU 311 | Buy part |
WINDING PINION | 410/GRU 311 | Buy part |
