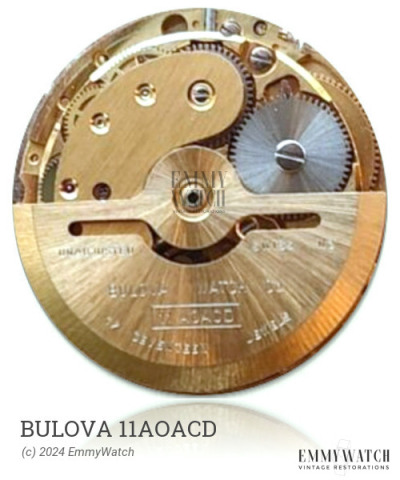

Bulova 11AOACD
Ligne: 11.5'''
Jewels: 17/21/25
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1960
Diameter: 26 mm
Height: 7.15 mm
Hands: 1.30 x 0.90 x 0.22 mm
The Bulova 11AOACD watch movement is a detached manual winding movement which is similar to the A. Schild 1515 movement. The specific differences between the 1515 and 1571 movements are not known. The movement features several functions including automatic winding, sweep seconds, day indication without quickset, date indication set by a pusher at the 2 o'clock position, and a calendar. It was commonly used during the period around 1960.
The Bulova 11AOACD features the following functions:
- Automatic Winding
- Calendar
- Date: Set by pusher at 2h
- Day: no quickset
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 280 x 8.5 mm | GR3952X | Auto | Buy mainspring |
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
