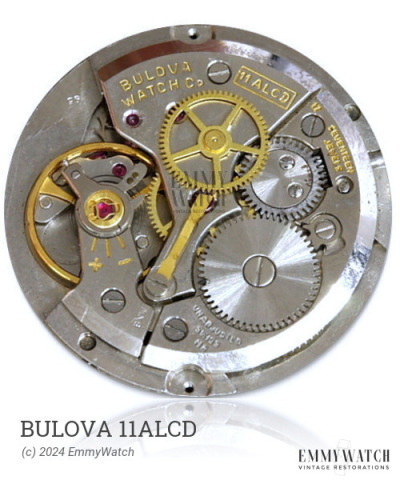

Bulova 11ALCD
Ligne: 18.5'''
Jewels: 3/10
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1928-
Diameter: 41.85 mm
Height: 5.3 mm
Hands: 1.82 x 1.16 / 0.21 mm
Base: Junghans J38
The Bulova 11ALCD is an open face calibre watch movement with a stem mechanism between plates. It features an indirect minute and hand friction clutch on the barrel. If equipped with three jewels, the balance includes two bearing jewels and one cap jewel, while the lever is equipped with steel pallets. This movement allows for stem winding and pin setting, and includes a sub second function. It was used during the period of 1928 and onwards.
The Bulova 11ALCD features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.200 x 21.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
