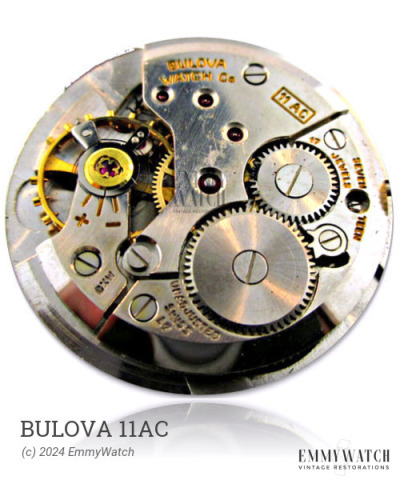

Bulova 11AC
Ligne: 10.5'''
Jewels: 15
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.23 x 0.68 / 0.15 mm
The Bulova 11AC watch movement is a manual wind mechanism with a stem mechanism that does not include a setting-lever spring. It features a sub-second function and was utilized primarily around the year 1943.
The Bulova 11AC features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2484 | Ordinary/None | Buy staff |
| 3930 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.100 x 280 x 8.5 mm | GR4121 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
