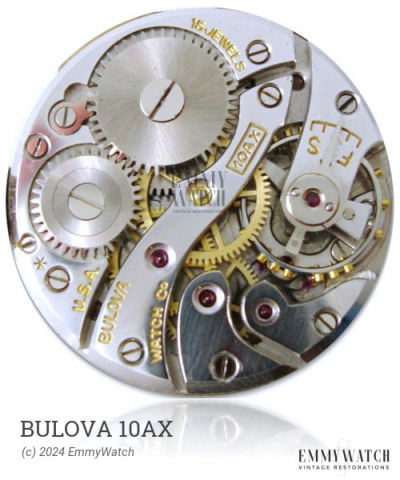

Bulova 10AX
Ligne: 16.25'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 36.8 mm
Height: 3.95 mm
Hands: 1.90 x 1.00 / 0.28 mm
The Bulova 10AX is a mechanical watch movement commonly used in open face calibre watches. It offers the optional feature of a bimetallic screw balance. The movement shows no discernible differences in performance between the 520 and 529 variations. It encompasses functions such as stem winding and setting, as well as a sub-second display. The Bulova 10AX was primarily utilized around the year 1936.
The Bulova 10AX features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
