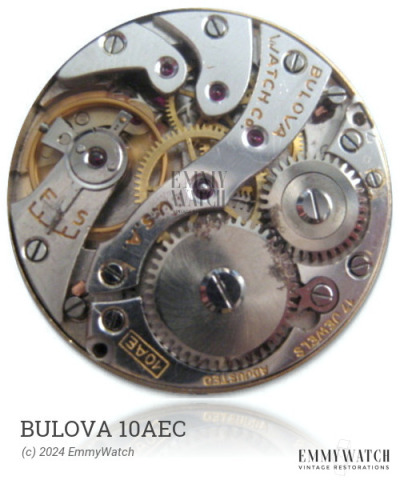

Bulova 10AEC
Ligne: 15'''
Jewels: 16/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 33.85 mm
Height: 3.4 mm
Hands: 1.60 x 1.00 / 0.18 mm
The Bulova 10AEC watch movement is a hunter calibre movement, belonging to a series that includes the 504 and the 506. The specific differences between these two movements are not known. The 504 movement incorporates functions such as stem wind and set, as well as a sub second hand. This movement was commonly used in watches produced around the year 1955.
The Bulova 10AEC features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.165 x 400 x 13.5 mm | GR3028 | Manual | Buy mainspring |
| 1.20 x 0.170 x 350 x 13.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
