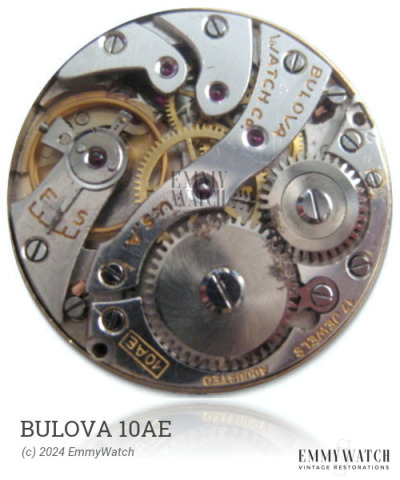

Bulova 10AE
Ligne: 5.25 x 6.25'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Size: 11.75 x 14.3 mm
Height: 3.25 mm
Hands: 1.00 x 0.55 mm
The Bulova 10AE is a manual wind watch movement that was in use around the 1960s. It shares similarities with the A. Schild 1017, but the specific differences are not known.
The Bulova 10AE features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.060 x 180 x 5.5 mm | GR3171 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
