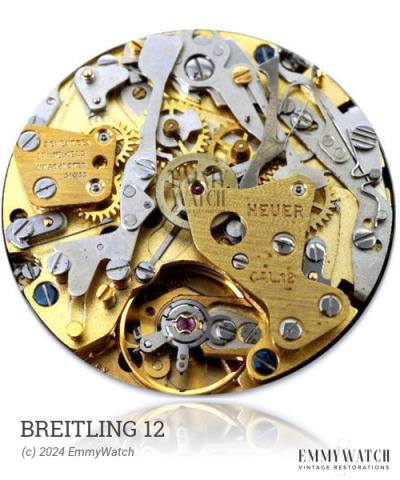

Breitling 12
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.7 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Breitling 12 watch movement, which was most likely used during the period around 1970, incorporates several functions including automatic winding, sweep second, central hours, central minutes, and central sweeping seconds. Further details regarding the differences between the 2520R, 2524, 2525, and 2528 models are unknown.
The Breitling 12 features the following functions:
- Automatic Winding
- Central hours
- Central minutes
- Central sweeping seconds
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
| 1.20 x 0.120 x 350 x 11.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
