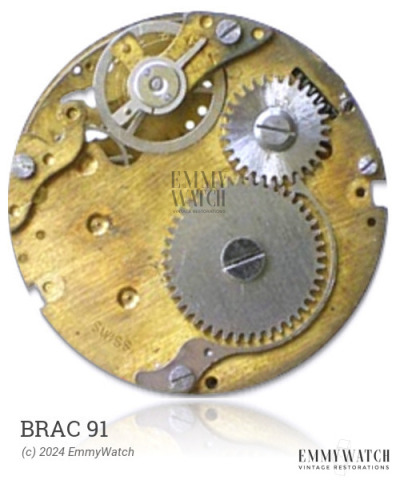

Brac 91
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 23.3 mm
Height: 3.8 mm
Hands: 1.30 x 0.80 / 0.20 mm
The Brac 91 is a manual wind mechanical watch movement with sub-second function. It shares similarities with other A. Schild movements such as 984, 1009, 1010, 1013, 1028, 1033, 1035, 1038, 1048, 1050, 1055, 1077, 1084, 1089, 1091, 1141, 1211, 1218, 1231, 1259, 1277, 1285, 1313, 1377, 1440, and 1614, except for differences in bridge shapes. The Brac 91 was commonly used in watches around the 1940s.
The Brac 91 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 300 x 9.0 mm | GR4879 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

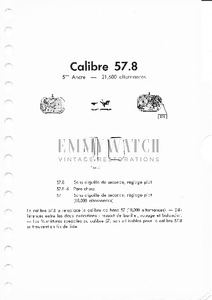

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
