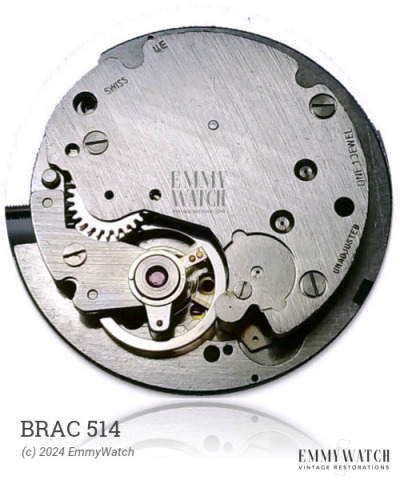

Brac 514
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.60 x 1.15 x 0.22 mm
Base: Phenix 350
The Brac 514 watch movement features a peculiar arrangement where the train and hand gear are driven independently by the barrel. This manually-wound movement incorporates the following functions: sweep seconds, date hand, and sweep seconds.
The Brac 514 features the following functions:
- Date Hand
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4504 | Ordinary/None | Buy staff |
| 4264 | Incabloc | Buy staff |
| 4264 | Shockproof | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.110 x 340 x 10.0 mm | GR3285 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
