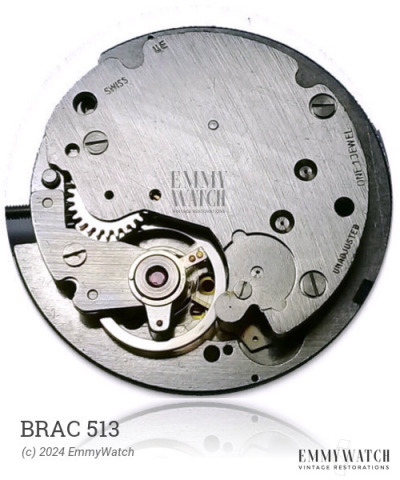

Brac 513
Ligne: 6.75 x 8'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Size: 15.23 x 18.05 mm
Hands: 1.20 x 0.80 mm
Base: Bettlach 1612
The Brac 513 watch movement features a pin-lever escapement, ratchet on the dial side, and a crown mechanism with a rocker bar. The differences between the 053/10, 053/20, 053/70, 053/73, and 053/703 models are not specified. It is a manual wind movement that was commonly used around 1970.
The Brac 513 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
