Brac 512
Ligne: 8.75'''
Jewels: 1/17
Lift Angle: 60°
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1972-1973
Diameter: 19.7 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 mm

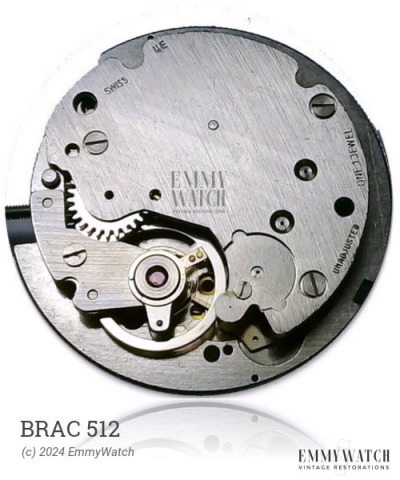

The Brac 512 watch movement, produced from 1972 to 1973, features a pin-lever escapement and an indirect minute with a hand friction clutch on the barrel. Variants within this movement family are not well-documented, limiting the available information. The movements are typically labeled with the name of the dominant variant produced. Additional codes may be included to denote specific features if the official designation is unknown. Notable functions include manual winding and pin lever mechanism.
The Brac 512 features the following functions:
- Manual Winding
- Pin lever
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.090 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
