Brac 511
Ligne: 7.75'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 17.5 mm
Height: 2.85 mm
Hands: 1.20 x 0.60 mm
Base: Felsa 4120

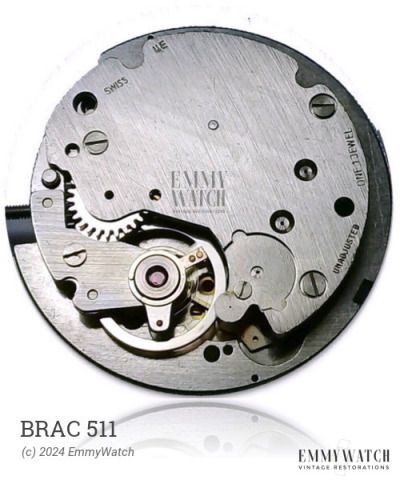

The Brac 511 is a manual wind watch movement that was in use around the 1960s. It offers an optional sub-second function.
The Brac 511 features the following functions:
- Manual Winding
- Option: sub second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.080 x 220 x 7.0 mm | GR3081 | Manual | Buy mainspring |
| 1.25 x 0.070 x 210 x 6.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.075 x 220 x 6.5 mm | GR2861 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 721/1419 | 721/FEL 4120 | Buy part |
| MAINSPRING 1.25-.08-220 7 | MS-3513C | 3081-GR | Buy part |
| PALLET ARBOR | 72S/7P | 714/ETA 2360 | Buy part |
| ROLLER 155X70X33 | 82S/8R | Buy part | |
| ROLLER, INCABLOC 155X70X33 | 82S/159R | Buy part | |
| STAFF, BALANCE .75 | 100/1855 | Buy part | |
| STAFF, INCA BALANCE .75 | 100/1894 | Buy part | |
| STEM | 200/1310 | Buy part | |
| STEM, MALE OA6.22 SH1.44 | 360/340 | 404/FEL 4020 | Buy part |
