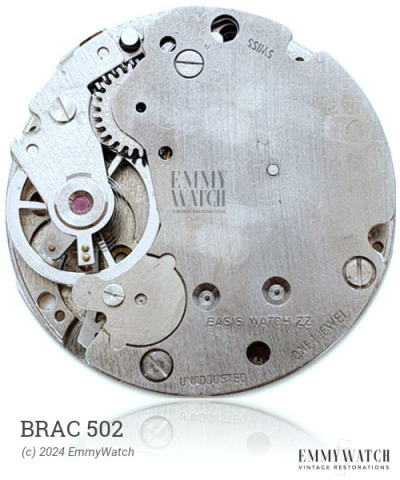

Brac 502
Ligne: 17'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 38.2 mm
Height: 5.85 mm
Hands: 1.90 x 1.00 / 0.28 mm
The Brac 502 is an open face calibre watch movement series, spanning from 500 to 509, with differences between these specific models remaining unknown. It features stem winding and setting functionality, as well as a sub-second hand. This movement was commonly used around the year 1936.
The Brac 502 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 62 | Ordinary/None | Buy staff |
| 3644 | Ordinary/None | Buy staff |
| 59 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.180 x 500 x 15.0 mm | GR6061 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
