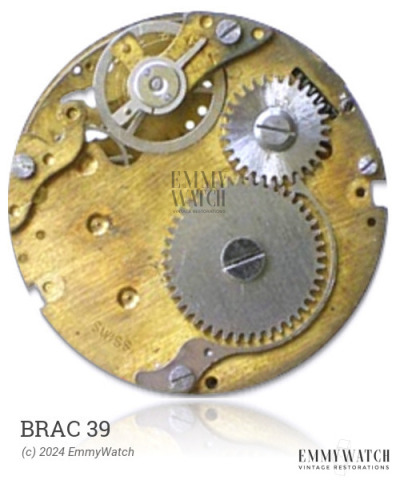

Brac 39
Ligne: 11.5'''
Jewels: 19
Lift Angle: 54°
Power Reserve: 50 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1964-1966
Diameter: 26 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 x 0.20 mm
The Brac 39 is a manual wind mechanical watch movement that was produced from 1964 to 1966, with 110,000 units manufactured. It features an excenter regulator and a Kif-Duofix combined settings for the escapement wheel. This movement also includes key functions such as a sweep second hand and a date display that can be set by changing the time between 18:20-24h. Additionally, it incorporates an adjustable stud holder.
The Brac 39 features the following functions:
- Adjustable Stud Holder
- Date: Set by changing 18:20-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.120 x 290 x 10.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.120 x 320 x 9.5 mm | GR2973 | Manual | Buy mainspring |
| 1.20 x 0.130 x 300 x 9.5 mm | GR2988 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
