Brac 218
Ligne: 11.5'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 43 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1965
Diameter: 25.6 mm
Height: 4.2 mm
Hands: 1.50 x 0.90 x 0.18 mm

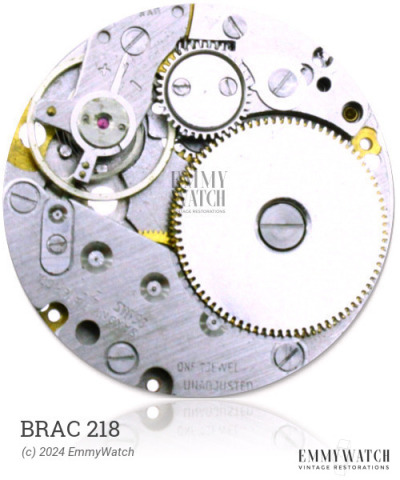

The Brac 218 watch movement is a manual wind movement with a sweep second feature. It also includes an Adjustable Stud Holder, which allows for precision adjustment of the balance wheel. The movement is equipped with shock protection to enhance its durability. The 25-36 movement was predominantly used during the approximate period of 1965.
The Brac 218 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.130 x 400 x 12.0 mm | GR3342 | Manual | Buy mainspring |
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
