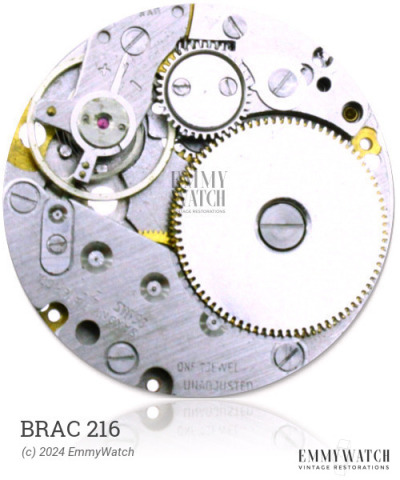

Brac 216
Ligne: 10.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 3.85 mm
Hands: 1.40 x 0.80 / 0.22 mm
The Brac 216 is a manual wind movement with sub second functionality. It is part of a series of movements that includes the 810 through 815, 818, 822, 823, 897, and 899. Not much is known about the specific differences between these movements, including the Brac 216. The movement features various bridge shapes, adding to its technical design.
The Brac 216 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 280 x 8.5 mm | GR4513 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
